Visual Diffing

Reshot automatically compares new assets against previous versions to detect UI regressions. This helps you catch unintended visual changes before they reach production.

How It Works

Asset Detail View — The asset detail view showing comparison tools controlled by diffing configuration

Every time you run scenarios:

New assets are generated
Each asset is compared pixel-by-pixel against the previous version
A diff manifest is created showing: new, changed, or unchanged assets
Changed assets show exactly which pixels differ

Configuration

Enable and configure diffing in docsync.config.json:

JSON

{
  "diffing": {
    "enabled": true,
    "threshold": 0.1,
    "includeAA": false
  }
}

Property	Type	Default	Description
`enabled`	boolean	`true`	Enable visual diffing
`threshold`	number	`0.1`	Sensitivity (0.0 to 1.0)
`includeAA`	boolean	`false`	Include anti-aliasing pixels in diff

Threshold Settings

Threshold	Behavior
`0.0`	Exact match required (very strict)
`0.1`	Catches meaningful changes (recommended)
`0.5`	Only catches significant changes
`1.0`	Almost everything passes

Anti-Aliasing

The includeAA option controls whether anti-aliasing differences are flagged:

false (default): Ignores minor rendering differences between browsers/platforms
true: Flags all pixel differences including font smoothing

Keep includeAA: false for most use cases to avoid false positives from cross-platform rendering differences.

Diff Output

After running scenarios, the diff results are available in:

Code

.reshot/output/
├── homepage.png
├── homepage.diff.png    # Visual diff overlay
└── manifest.json        # Diff status for all assets

Manifest Example

JSON

{
  "assets": [
    { "key": "homepage", "status": "unchanged" },
    { "key": "login-form", "status": "changed", "diffPercent": 2.3 },
    { "key": "new-feature", "status": "new" }
  ]
}

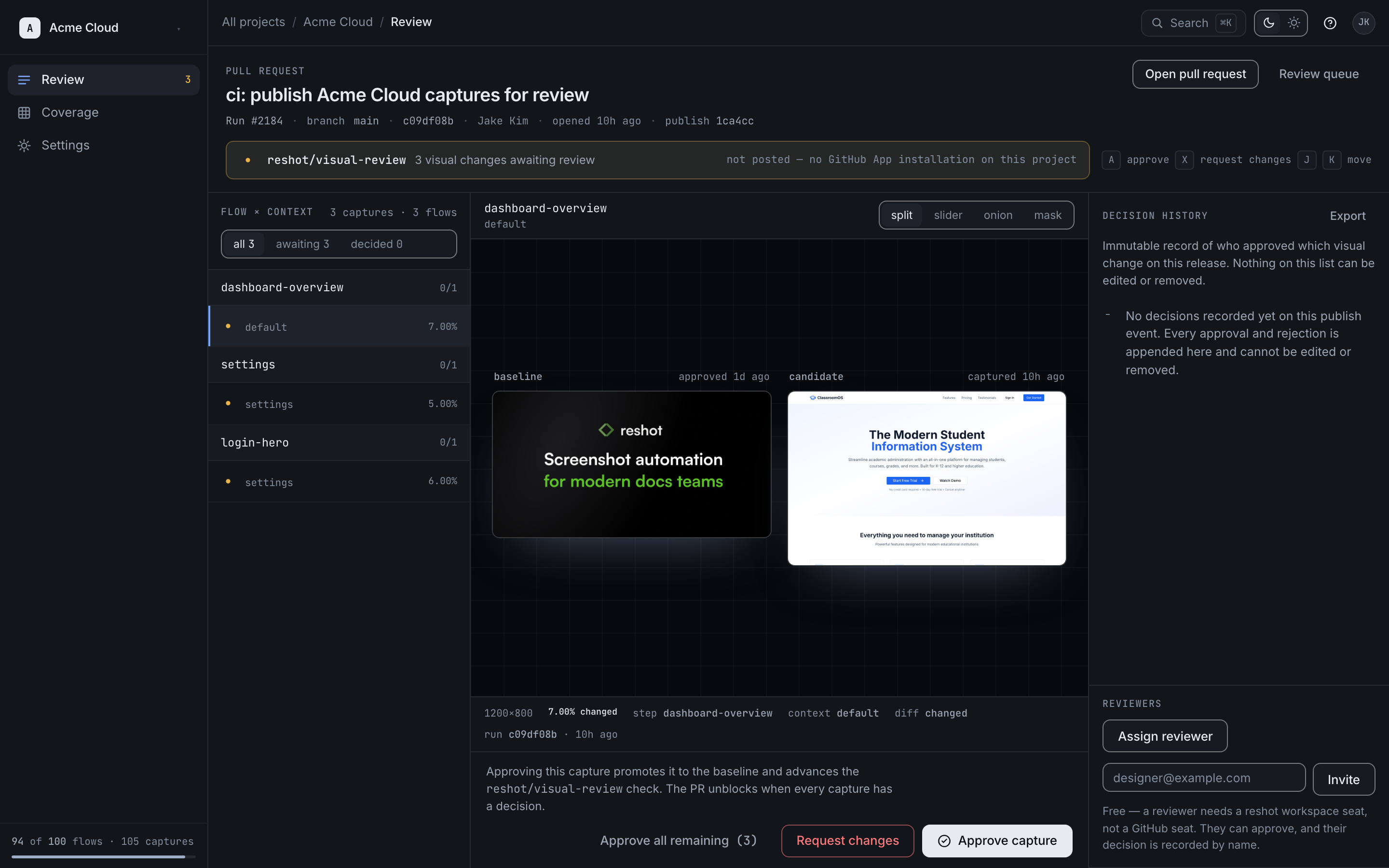

Platform Review

If using Reshot Platform, changed assets automatically enter the Review Queue for approval before going live.
